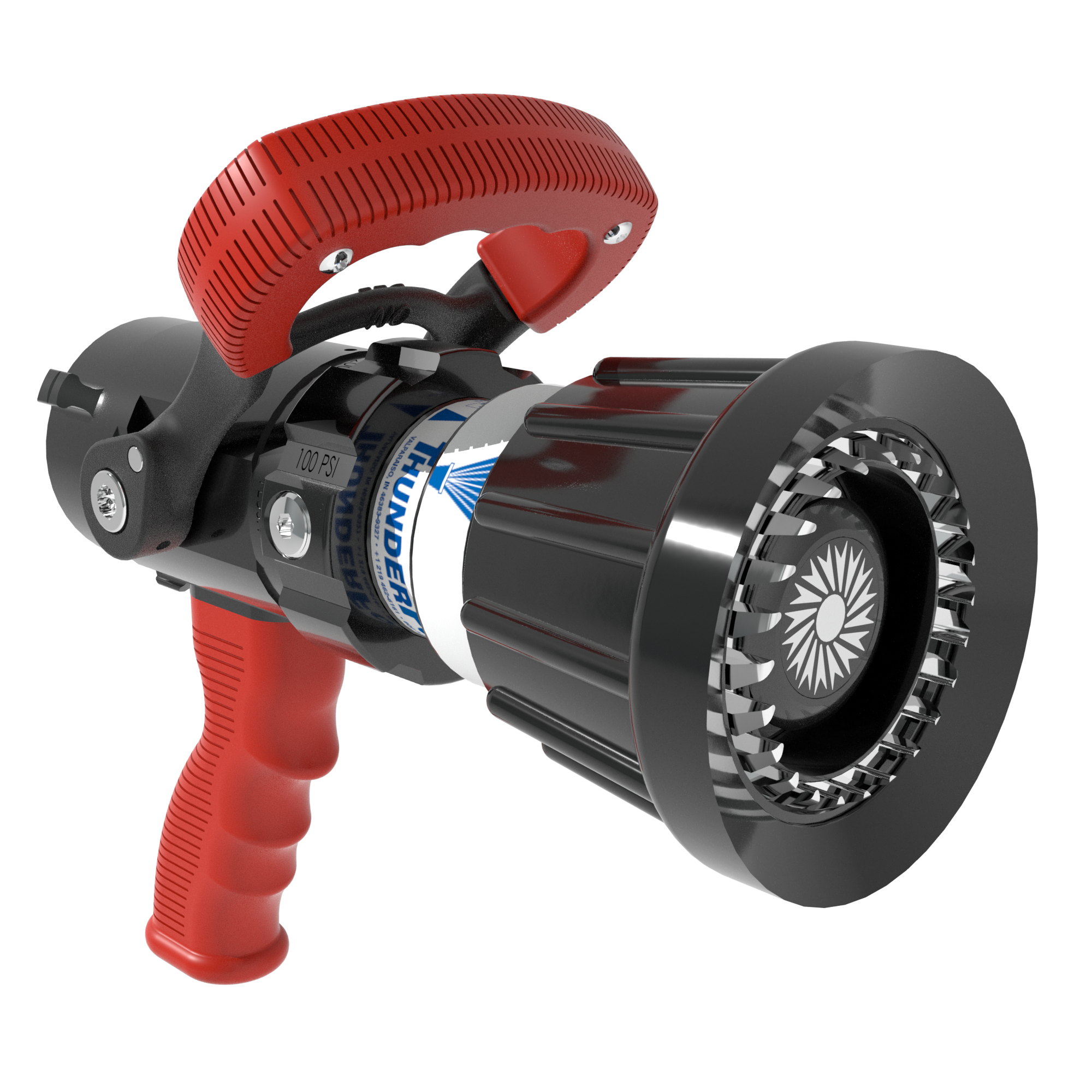

ThunderFog Selectable One-Piece Nozzle With Pistol Grip (Red), Ball Valve – 110/230/360/470/570/750 LPM @ 5 Bar, 38 mm BSPF Rocker Swivel Inlet, Metal Teeth

$1,586.00

SKU: FTS-EPPSF-BF Category:

Versatile Nozzles for Any Fire Scene

The ThunderFog® series offers high-performance selectable combination nozzles, ideal for versatile fireground applications. Built to meet NFPA standards, these nozzles deliver precise control over water flow and pressure, adapting to different hose line sizes and firefighting scenarios. With options for 75 and 100 PSI (5 and 7 Bar), ThunderFog® nozzles provide dependable, powerful water streams for optimal fire suppression, offering both tip-only and one-piece configurations.

Key Features:

  • Selectable Flow Rates: Adjustable GPM settings for customized flow control, up to 250 GPM (950 LPM)
  • Durable Construction: Made from high-quality materials and strict manufacturing tolerances to withstand the most demanding firefighting conditions
  • Multiple Hose Sizes: Compatible with hose sizes from 1.5” (38 mm) to 3” (75 mm), suitable for various firefighting setups
  • Configurable Options: Available in tip-only or one-piece models with a ball valve for enhanced control
  • Pressure Options: 75 PSI and 100 PSI (5 and 7 bar), providing flexibility in pressure requirements in your response district
  • Ergonomic Design: Features rocker lug coupling, pistol grip options, and rigid or swivel connections for easy handling
  • Metal Teeth: Choice of fixed or spinning metal teeth for optimal stream shaping and performance

All Prices in USD

Specifications

Weight 5.800 lbs
Remote Control

N

Pistol Grip

Color

Straight Tip

N

Brand

Thunderfog®

Nozzle Type

Selectable

Nozzle Valve Style

Ball Valve

Nozzle Teeth

Fixed Metal

Certifications

NFPA Compliant

Nozzle Style

One-Piece

Nozzle Grip

Pistol

Target Nozzle Flow (Imp)

30/60/95/125/150/200 GPM

Target Nozzle Flow (Met)

110/230/360/470/570/750 LPM

Target Nozzle Pressure (Bar)

5 Bar

Target Nozzle Pressure (KPA)

500 KPA

Nozzle Hose Size (Imp)

1.5"

Nozzle Hose Size (Met)

38 mm

Nozzle Hose Connection Type

BSP Female

Nozzle Hose Coupling Style

Rocker Lugs

Nozzle Hose Coupling Swivel

Swivel

Target Nozzle Pressure (PSI)

75 PSI

Documents

Certifications & Approvals

Instructions For Installation, Safe Operation and Maintenance
