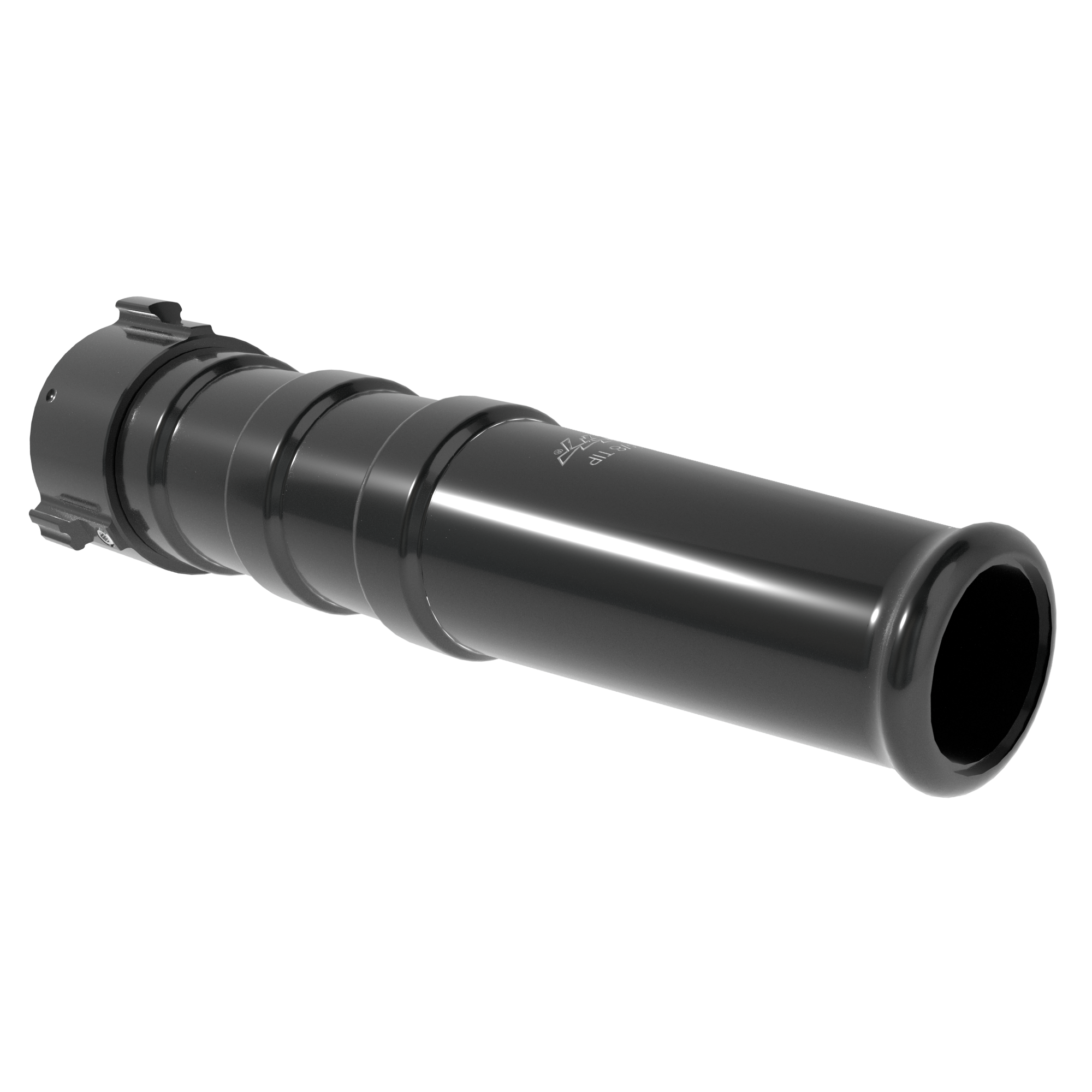

Smooth Bore 1-3/8″ CAFS Nozzle Tip – 1.5″ NHF Swivel Inlet

Call for Price: 219-462-6161

image_pdf
SKU: FSS13-CAFS Category:

1.5″ Smooth Bore CAFS Stacked Nozzle Tips

Our 1.5″ Smooth Bore CAFS Stacked Nozzle Tips are designed for use with Compressed Air Foam Systems (CAFS), delivering exceptional stream quality and penetration. Available in a 1-3/8″ size, these tips are constructed from high-strength aluminum alloy and hard coat anodized for durability. The recessed orifice edge and aluminum bumper protect the tip, while the laser-engraved pressure and flow chart ensures quick and easy selection.

Key Features:

  • Size: 1-3/8″
  • Inlet: 1.5″ NHF
  • Material: High-strength aluminum alloy with hard coat anodizing
  • Protection: Recessed orifice edge and aluminum bumper for durability
  • Quick Reference: Laser-engraved pressure and flow chart for easy selection

All Prices in USD

Specifications

Weight 1.800 lbs
Pistol Grip

Remote Control

N

Color

Straight Tip

N

Brand

Smooth Bore

Nozzle Type

Smooth Bore

Nozzle Valve Style

Sold Separately

Nozzle K-Factor

56.6

Nozzle Teeth

Toothless

Nozzle Style

CAFS Tip

Target Nozzle Flow (Imp)

400 GPM

Target Nozzle Flow (Met)

1500 LPM

Target Nozzle Pressure (Imp)

50 PSI

Target Nozzle Pressure (Bar)

3.5 Bar

Target Nozzle Pressure (KPA)

350 KPA

Nozzle Hose Size (Imp)

1.5"

Nozzle Hose Size (Met)

38 mm

Nozzle Hose Connection Type

NH Female

Nozzle Hose Coupling Style

Rocker Lugs

Nozzle Hose Coupling Swivel

Swivel

Nozzle Orifice Size (Imp)

1-3/8"

Nozzle Orifice Size (Met)

35 mm

Product Length (Imp)

9.7"

Product Length (Met)

24.64 cm
