What is Max-Force?

Max-Force is a dual-pressure automatic master stream nozzle designed specifically for use with portable monitors like the BlitzFire® and BlitzForce™. It offers flow rates from 100 to 500 GPM (400 to 2000 LPM) and features both standard and low-pressure modes, making it adaptable to various firefighting conditions. With its full pattern control, Max-Force allows firefighters to switch between a straight stream and wide fog pattern, ensuring flexibility and effectiveness on the fireground.

What problems does Max-Force solve?

  • Inconsistent Water Delivery: Max-Force provides dual-pressure operation, allowing it to deliver 100 to 500 GPM (400 to 2000 LPM) at both standard (100 PSI / 7 bar) and low-pressure (55 PSI / 4 bar) settings. This versatility ensures that firefighters can adjust water flow based on their immediate needs, making it ideal for dynamic firefighting scenarios.
  • Limited Stream Pattern Control: Max-Force offers full control over water stream patterns, giving firefighters the ability to shift from a wide fog to a straight stream as needed. The built-in ring enables smooth and quick transitions between patterns, providing maximum control during operations.
  • Inadequate Pressure Management: With the integrated baffle switch, Max-Force allows for easy transitions between standard and low-pressure settings. This feature simplifies pressure control, giving firefighters greater operational flexibility

Key Features

Max Series.00 00 02 07.Still002

Flow Rate

Max-Force delivers between 100 and 500 GPM (400 to 2000 LPM) at both standard and low-pressure settings. This ensures that firefighters have the flexibility to adjust water flow based on fireground needs, making it a powerful tool for initial attack or sustained operations.

Max Series.00 00 04 01.Still003

Stream Pattern

Max-Force provides a wide fog pattern for maximum area coverage, or a straight stream for focused water application. This adaptability allows firefighters to respond effectively to different fire scenarios.

Max Series.00 00 14 10.Still010

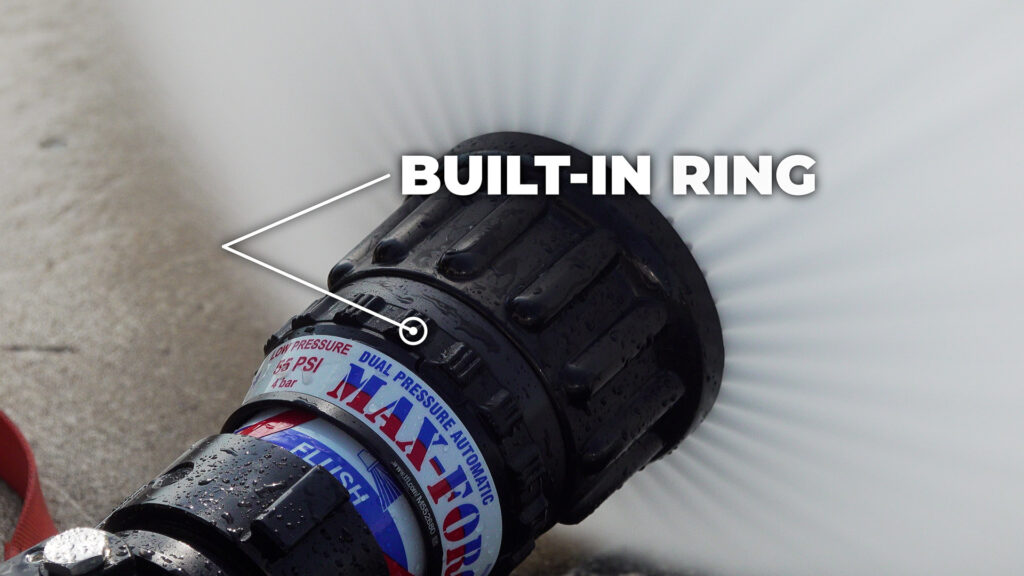

Built-In Ring for Stream Transition

An integrated ring makes it easy for firefighters to transition between fog and straight stream modes, ensuring quick adjustments to meet the changing demands of firefighting operations.

Max Series.00 00 21 18.Still013

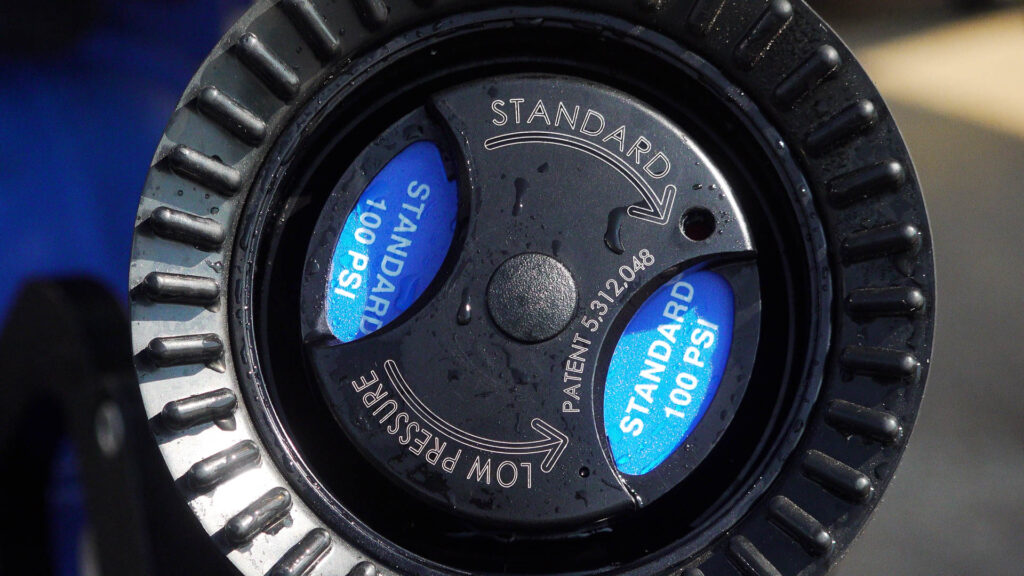

Baffle Switch for Pressure Control

Max-Force operates at two pressure settings: standard at 100 PSI (7 bar) and low at 55 PSI (4 bar), allowing for greater flexibility and optimized performance across different fire conditions. The integrated baffle switch allows firefighters to easily toggle between standard and low-pressure modes, giving them enhanced control over water flow and stream characteristics.

Max Series.00 00 25 12.Still015

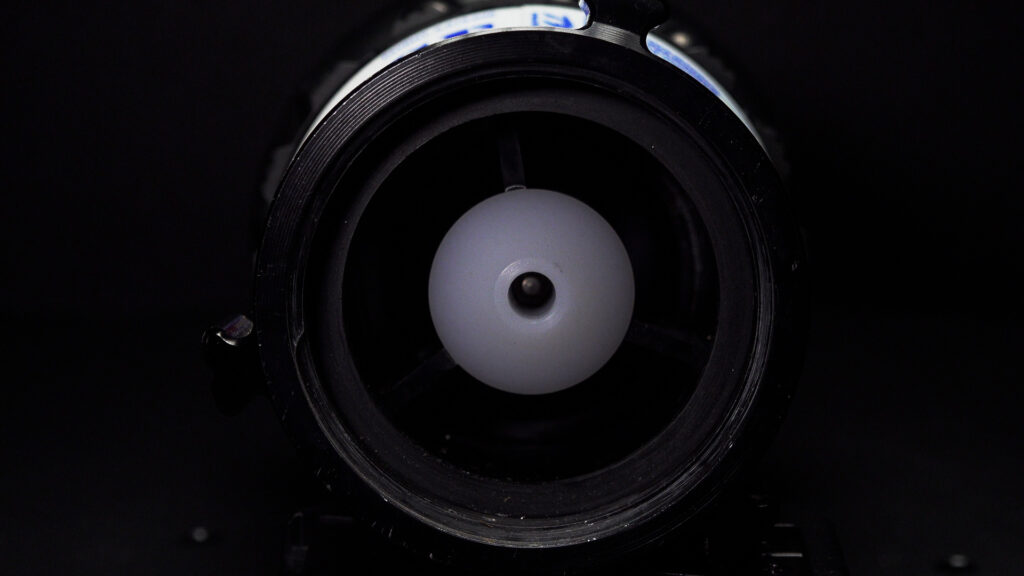

Internal Stream Straightener

Max-Force features an internal stream straightener, ensuring consistent and accurate water flow, improving stream quality for maximum firefighting efficiency.

Brands

Max-Force™

Download 2 Edited

• Type: Dual Pressure Automatic
• Flow Rate: 100 to 500 GPM (400 to 2000 LPM)
• Pressure Settings: Standard at 100 PSI (7 bar) and Low at 55 PSI (4 bar)
• Coupling Size: 2.5″ (65 mm)

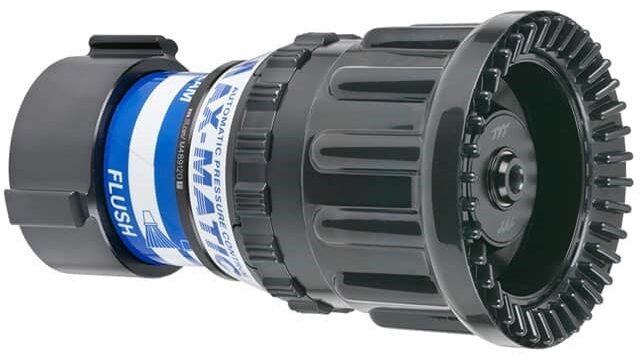

Max-Matic™

Download 3 Edited

• Type: Single Pressure Automatic
• Flow Rate: 100 to 500 GPM (400 to 2000 LPM)
• Pressure Options: Choose between 100 PSI (7 bar) and 80 PSI (5.5 bar)
• Coupling Size: 2.5″ (65 mm)

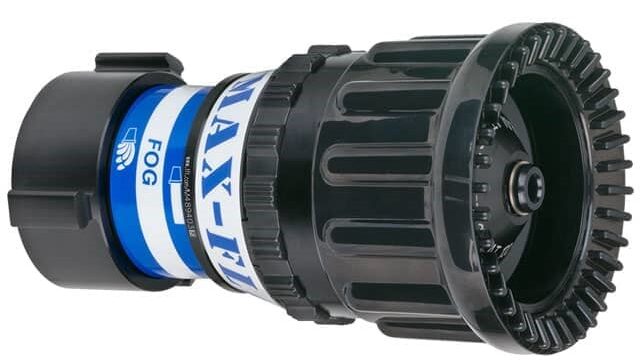

Max-Flow

Download 2 1 Edited

• Type: Fixed Gallonage
• Flow Rate: 500 GPM (2000 LPM)
• Pressure: 100 PSI (7 bar)
• Coupling Size: 2.5″ (65 mm)

Shop Max-Series

Frequently Asked Questions About Max-Series Nozzles (FAQ)

Max-Force nozzles deliver between 100 and 500 GPM (400 to 2000 LPM) at both standard (100 PSI / 7 bar) and low-pressure (55 PSI / 4 bar) settings. This allows for versatile water delivery depending on the fireground conditions.

The baffle switch on Max-Force allows firefighters to quickly and easily switch between standard pressure (100 PSI / 7 bar) and low pressure (55 PSI / 4 bar). The switch also acts as a pressure relief allowing excess water to exit an opening in the baffle.


Max-Force™ offers dual-pressure automatic control with flow rates from 100 to 500 GPM (400 to 2000 LPM), making it adaptable for both high and low-pressure situations.

Max-Matic™ provides single-pressure automatic operation, with options for either 100 PSI (7 bar) or 80 PSI (5.5 bar), delivering the same flow rates.

Max-Flow™ is a fixed gallonage nozzle, offering a steady flow rate of 500 GPM (2000 LPM) at 100 PSI (7 bar).

Traditionally, master stream nozzles operate at either 80 PSI (5.5 bar) or 100 PSI. The Max-Force offers a unique option of 55 PSI (3.8 bar). Similar to a handheld smooth bore that operates at 50 PSI (3.4 bar), the Max-Force allows you to operate at a lower pump pressure to achieve a high flow rate. This helps to protect your equipment by limiting wear on your pump and you achieve a higher flow rate with your pump working less.
