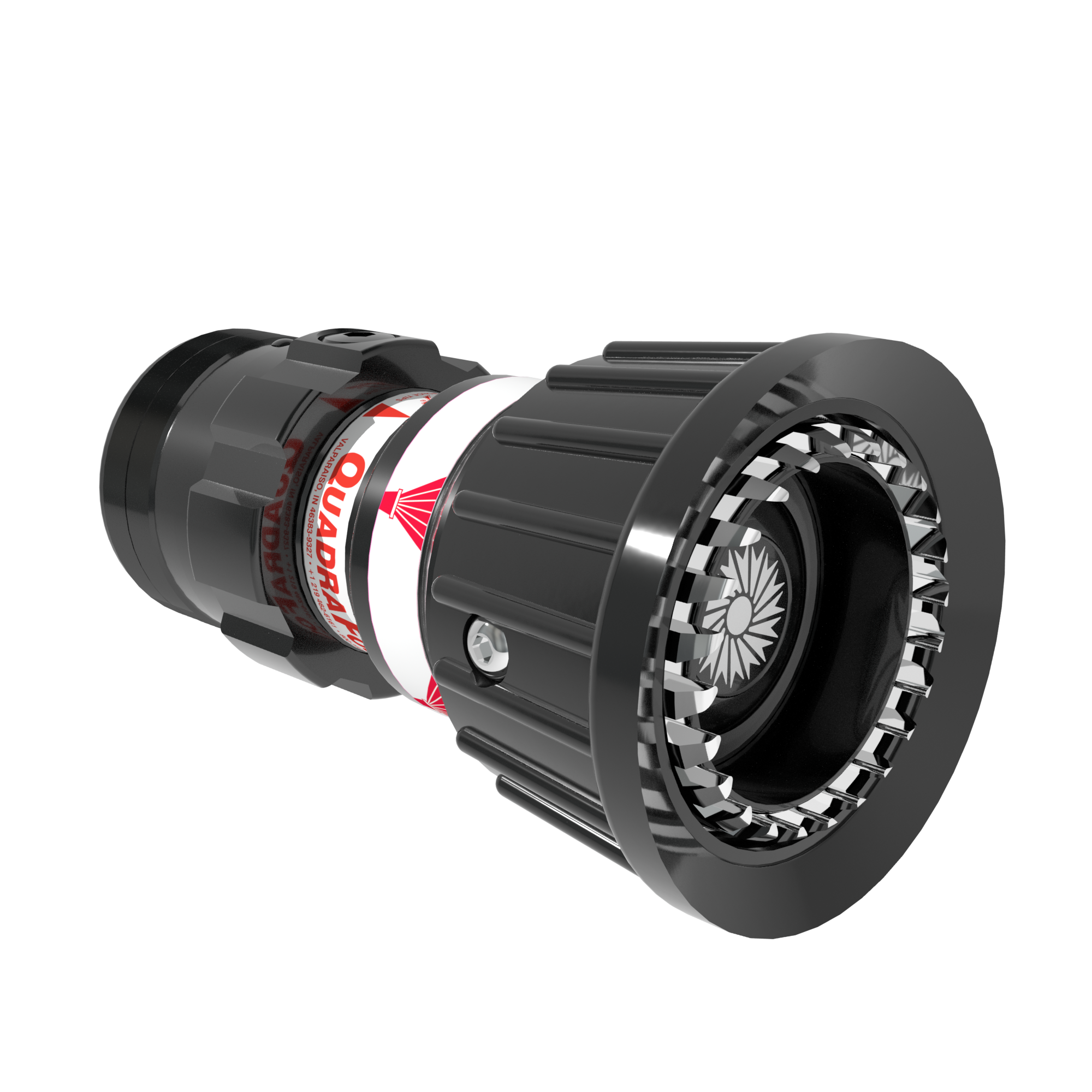

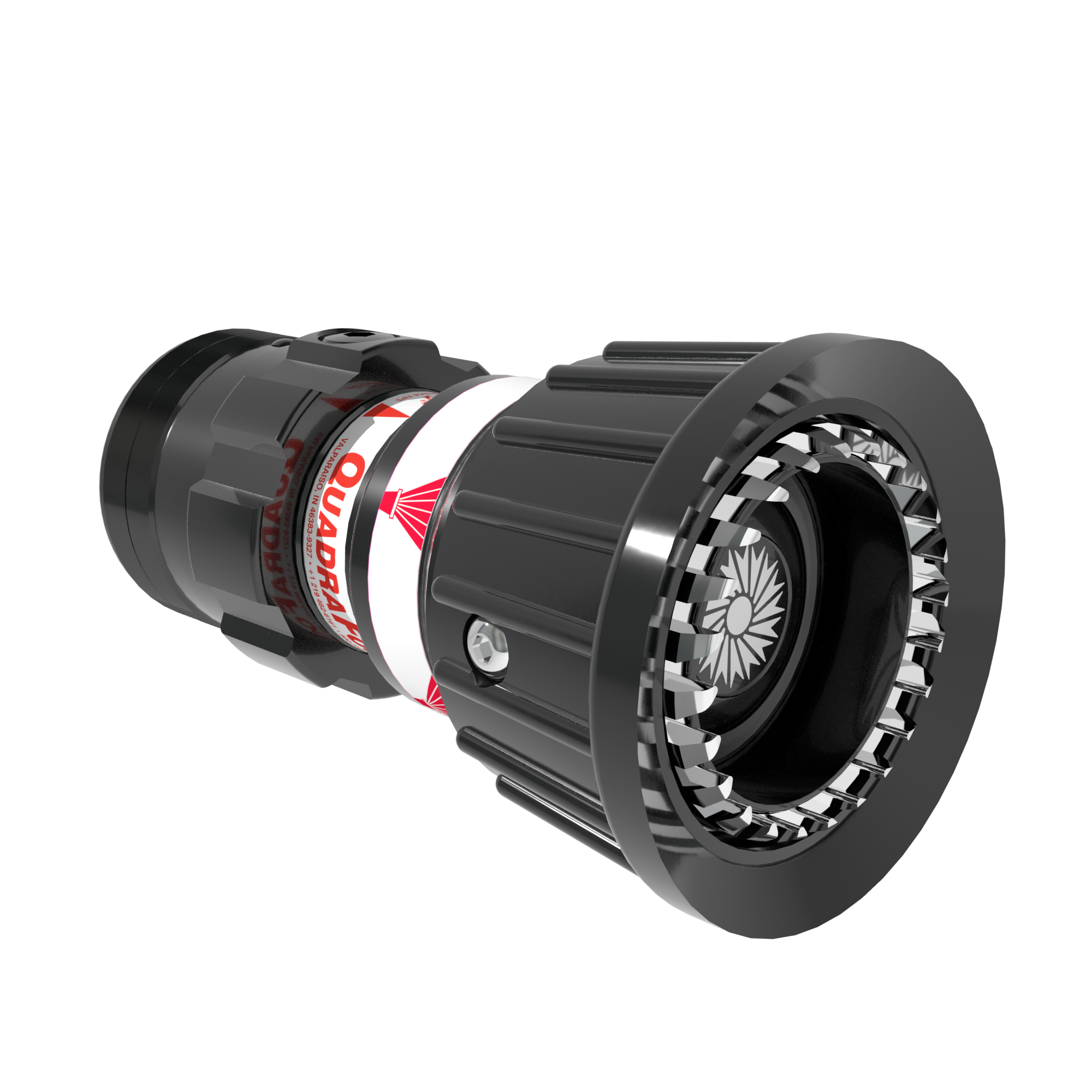

Quadrafog Selectable Nozzle Tip, Integrated Valve – 30/60/95/125 GPM @ 75 PSI, 1.5″ NHF Rigid Inlet, Spinning Metal Teeth

Call for Price: 219-462-6161

image_pdf
SKU: FQ125LS Category:

Versatile Selectable Flow Combination Nozzle

The Quadrafog® Selectable Nozzle series is built for versatility, offering multiple flow and pressure options to suit various firefighting needs. Available in high and low-pressure models for 1”, 1.5”, 2”, and 2.5” (25, 38, 52, and 65 mm) hose lines, Quadrafog® allows firefighters to switch between a straight stream and dense fog pattern with ease. Compatible with foam attachments for enhanced firefighting power, Quadrafog® provides precision and flexibility for all fireground operations.

Key Features:

  • Selectable Flow Options: Choose from multiple flow rate options on each model
  • Pressure Options: Available in 100 PSI (7 bar), 80 PSI (6 Bar), or 75 PSI (5 bar) for your target pressure applications
  • Compatibility: Suitable for 1”, 1.5”, 2”, and 2.5” (25, 38, 52, and 65 mm) hose lines, adaptable for various firefighting setups
  • Fog Pattern Adjustment: Adjustable from straight stream to dense fog, providing tactical control over water application
  • Teeth Options: Choice of fixed metal or spinning metal teeth for effective fog creation
  • Foam Compatibility: Designed to work with low-expansion and multi-expansion foam attachments
  • Available Configurations: Tip only models with integrated valves and one-piece models with ball valves to suit diverse operational needs

All Prices in USD

Specifications

Weight 2.300 lbs
Remote Control

N

Pistol Grip

Color

Straight Tip

N

Brand

Quadrafog®

Nozzle Type

Selectable

Nozzle Valve Style

Integrated Valve

Nozzle Teeth

Spinning Metal

Certifications

NFPA/FM

Nozzle Style

Tip Only

Target Nozzle Flow (Imp)

30/60/95/125 GPM

Target Nozzle Flow (Met)

110/230/360/470 LPM

Target Nozzle Pressure (Bar)

5 Bar

Target Nozzle Pressure (KPA)

500 KPA

Nozzle Hose Size (Imp)

1.5"

Nozzle Hose Size (Met)

38 mm

Nozzle Hose Connection Type

NH Female

Nozzle Hose Coupling Style

Knurled

Nozzle Hose Coupling Swivel

Rigid

Target Nozzle Pressure (PSI)

75 PSI

Documents

Technical Specifications and Drawings

Certifications & Approvals

Instructions For Installation, Safe Operation and Maintenance
