Quadrafog Selectable 1.5″ (38mm) Female, 30-125GPM (110-470LPM),75PSI (5bar), Off Position, Tip Only

Call for Price: 219-462-6161

SKU: FQ125LF Category:

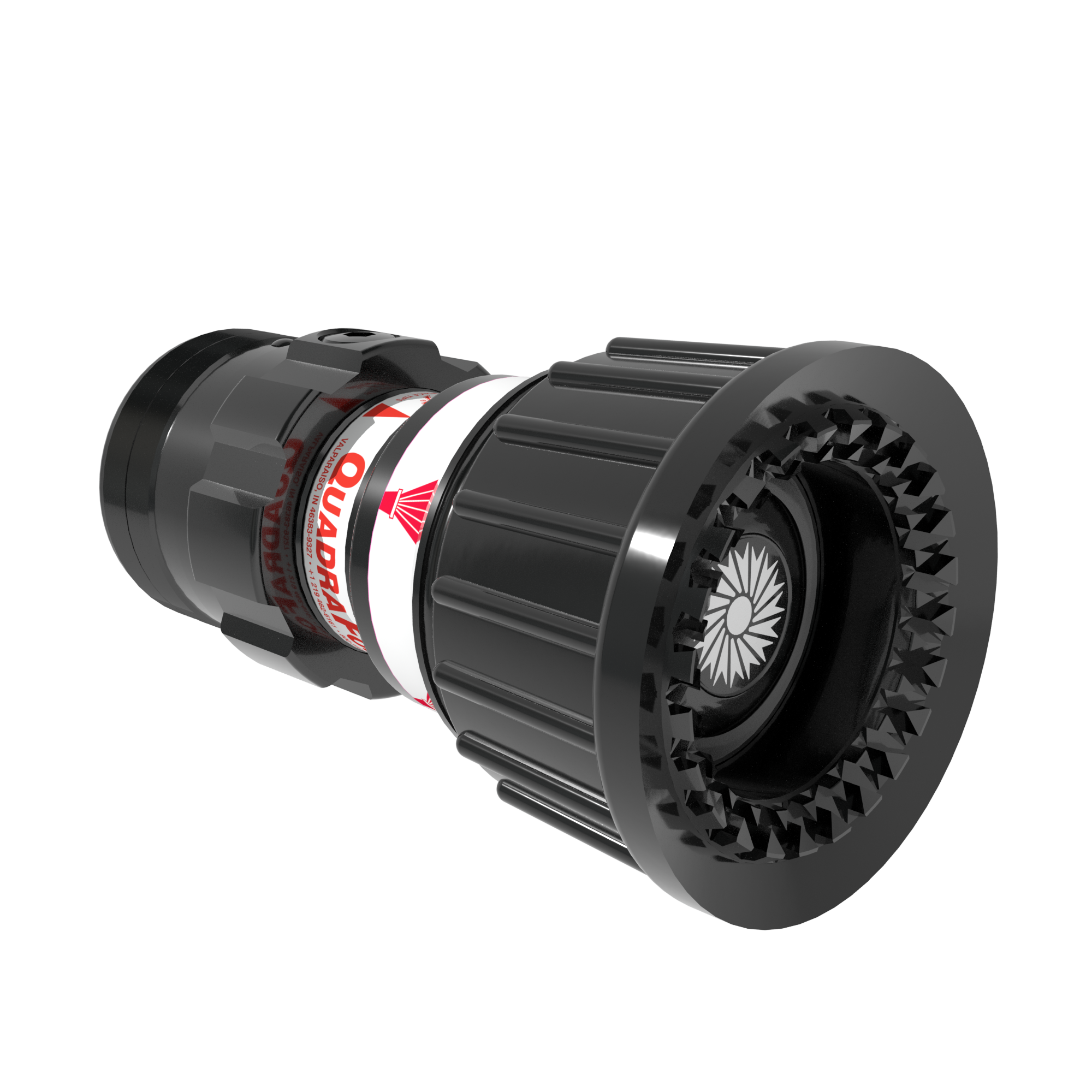

Quadrafog Selectable Firefighting Nozzle

Quadrafog is a lightweight selectable flow combination nozzle. This model has four flow settings of 30, 60, 95, and 125 GPM at 75 PSI (110, 230, 360, and 470 LPM at 5 bar). The stream is adjustable from a straight stream to a dense fog pattern and lets you flush without shutting down. Includes fixed fog teeth.

The nozzle is foam compatible and pairs with low-expansion or multi-expansion foam attachments. Quadrafog nozzles are made with hardcoat anodized aluminum.

Features and Benefits:

  • Flow settings of 30, 60, 95, and 125 GPM at 75 PSI (110, 230, 360, and 470 LPM at 5 bar)
  • 1.5″ (38mm) Female Coupling
  • NFPA and FM Certified
  • Fixed Fog Teeth

All Prices in USD

Specifications

Weight 2.300 lbs
Operating Pressure

Type

Selectable

Certification

NFPA/FM

Inlet Coupling Style

Remote Control

N

Valve Design

Pistol Grip

Body Size

1.5" (38 mm)

Break-Apart Style

Tip Only

Pressure Mode

Flow Rate

Style

Bumper Material

Rubber – bonded

Inlet Coupling Swivel

Straight Tip

N

Documents

Technical Specifications and Drawings

Certifications & Approvals

Instructions For Installation, Safe Operation and Maintenance
