HI RISE 45 DEG ELBOW W/ GAUGE

Call for Price: 219-462-6161

SKU: AVG2ENJNJ Category:

NO VALVE 0-200 PSI/BAR FIXED OUTLET

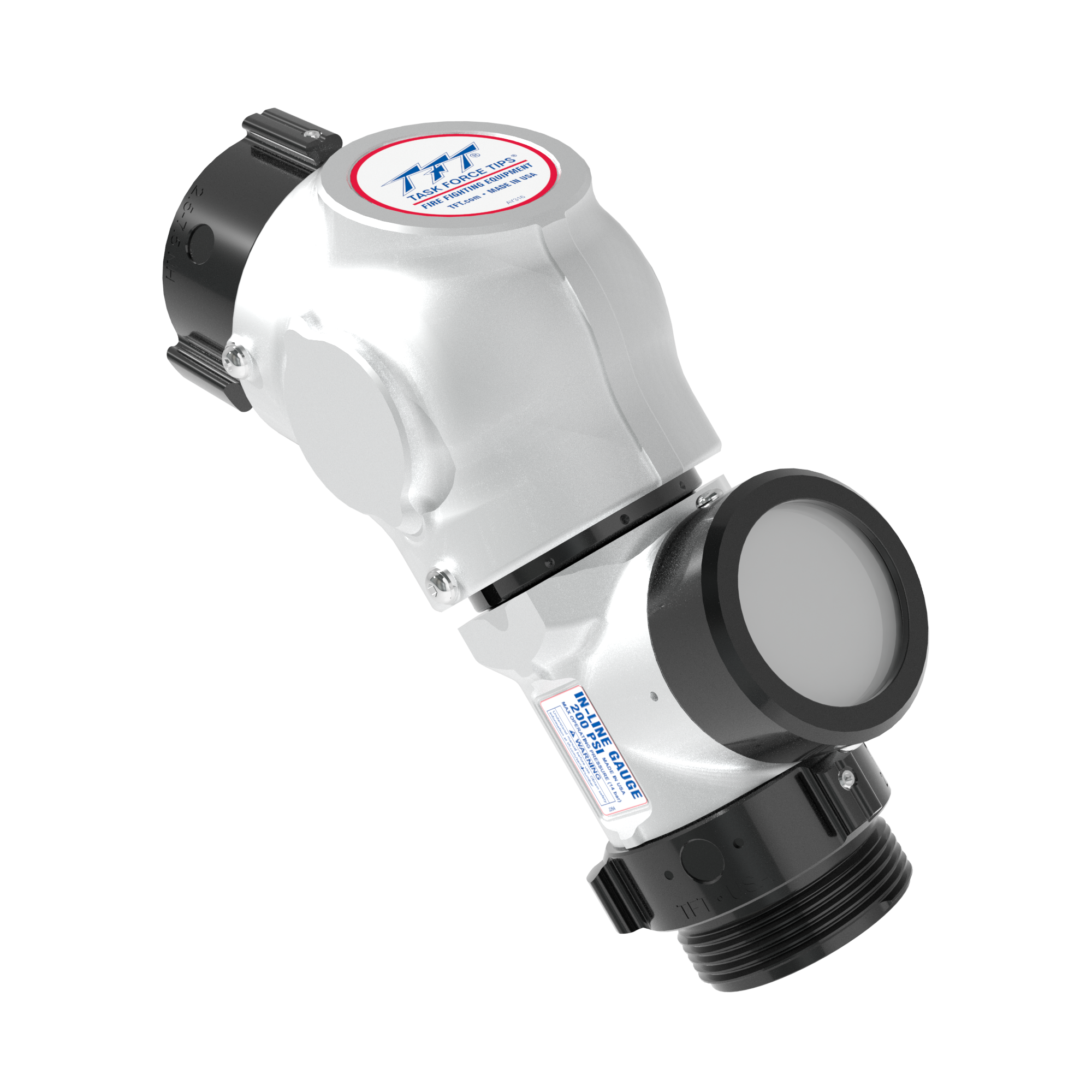

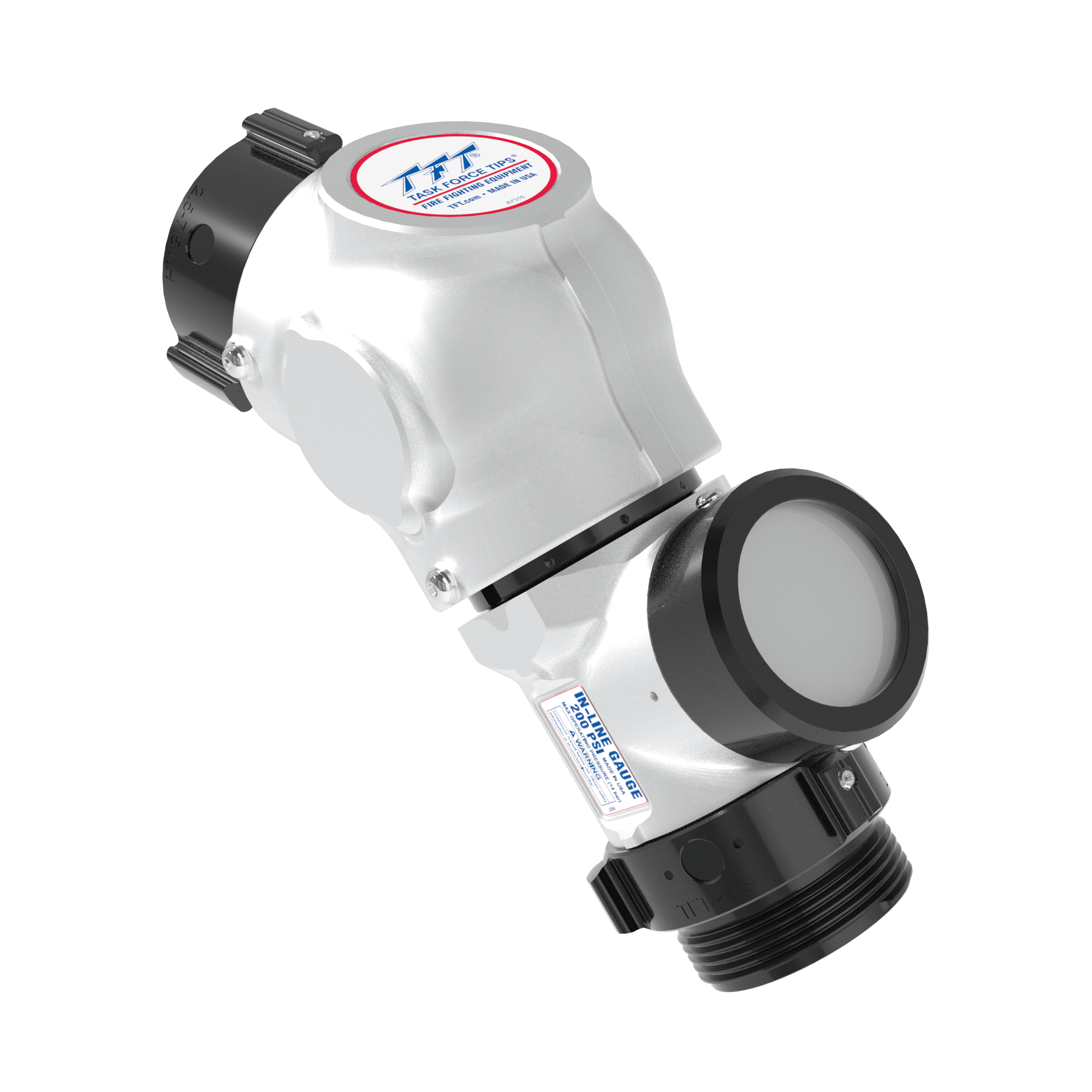

TFT’s 45-degree standpipe waterway with no valve, has a full 2.5” (65 mm) waterway that results in maximum flow rate with minimal friction loss. The waterway includes an air bleeder and a protected inline pressure gauge that reads 0 – 200 psi (0-14 bar). The inlet body of the waterway swivels 360 degrees before tightening and the body of the inline pressure gauge always swivels 360 degrees to fit the widest variety of standpipe connections. The 45-degree angle allows for adaptable installation and it positions the attack hose to prevent kinks.

All Prices in USD

Specifications

Weight 7.750 lbs
Connection Type Side A

Material

Coupling Swivel Side B

Connection Type Side B

Valve Design

Coupling Style Side A

Coupling Size Side B

Coupling Swivel Side A

Coupling Size Side A

Finish

Coupling Style Side B

Operation Energy Source

Size

Reviews

There are no reviews yet.

Be the first to review “HI RISE 45 DEG ELBOW W/ GAUGE”

Your email address will not be published. Required fields are marked *

Documents

Technical Specifications and Drawings

Service Procedures

Instructions For Installation, Safe Operation and Maintenance
