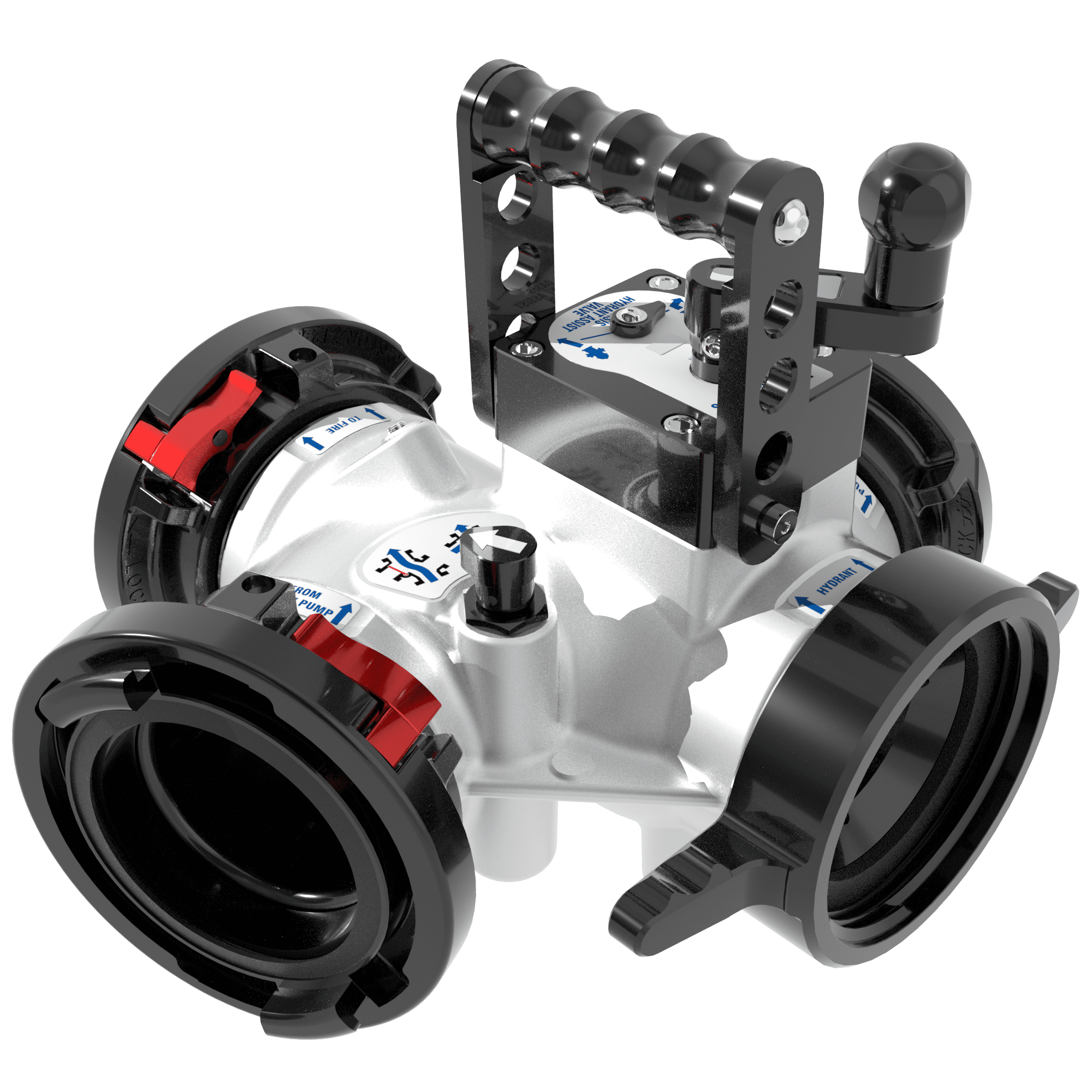

Oasis 4-Way Hydrant Assist Valve – 4.5″ NHF Swivel Handle Inlet, 5″ Storz Swivel Outlets

$4,487.00

SKU: ARS5R2T2T2T Category: Tag: Brand:

Shutoff Capable

All Prices in USD

Specifications

Weight 35.600 lbs
Dimensions 23.00 × 20.00 × 17.00 in
Color

Shutoff Capability

Yes

Valve Type

4-Way

Brand

Oasis™

Valve Control Location

Top Crank

Valve Control Style

Manual Gear Box

Valve Flow Direction

Uni-Directional w/ Boost

Valve Inlet Count

Single

Valve Inlet Size (Imp)

4.5"

Valve Inlet Size (Met)

115 mm

Valve Inlet Type

NH Female

Valve Inlet Style

Handles

Valve Inlet Swivel

Swivel

Valve Outlet Count

Single

Valve Outlet Size (Imp)

5"

Valve Outlet Size (Met)

125 mm

Valve Outlet Type

Storz

Valve Outlet Style

Quick-Connect

Valve Outlet Swivel

Swivel

Boost Inlet Size (Imp)

4.5"

Boost Inlet Size (Met)

115 mm

Boost Inlet Type

NH Female

Boost Inlet Style

Handles

Boost Inlet Swivel

Swivel

Boost Outlet Size (Imp)

5"

Boost Outlet Size (Met)

125 mm

Boost Outlet Type

Storz

Boost Outlet Style

Quick-Connect

Boost Outlet Swivel

Swivel
